Tecknit 8116 Adhesive

Let our team of experts help you with your next project

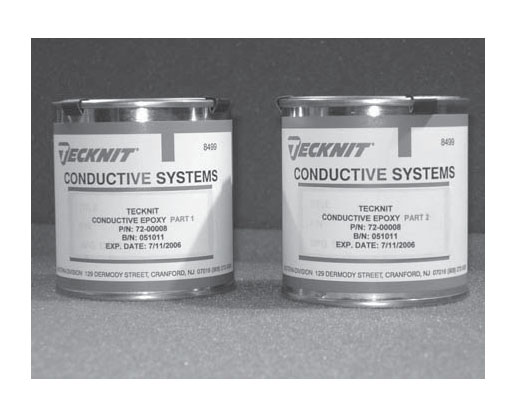

72-00008 – EPOXY ADHESIVE, CONDUCTIVE TWOCOMPONENT – This commercial grade, conductive epoxy is designed for use in bonding applications where good conductivity is required. When mixed in a ratio of 1:1.4 by volume or weight, the two components produce a light colored creamy paste which can be easily applied.

72-08116 – EPOXY SOLDER, CONDUCTIVE, HIGH SILVER CONTENT, TWO-COMPONENT – This is a silver filled epoxy system designed for maximum performance and lowest volume resistivity. It is easily mixed 1:1 by volume or weight, from the two one-ounce jars. Its consistency is that of a thick paste, making it easy to dispense and apply.

Details
Specs
Resources
Warranty

GENERAL DESCRIPTION

72-00008 – EPOXY ADHESIVE, CONDUCTIVE TWO COMPONENT – This commercial grade, conductive epoxy is designed for use in bonding applications where good conductivity is required. When mixed in a ratio of 1:1.4 by volume or weight, the two components produce a light colored creamy paste which can be easily applied.

PREPARATION AND CLEANING

To ensure the best electrical and mechanical reliability, it is highly recommended that the surfaces to be bonded are thoroughly cleaned of grease, oils, dirt and oxide coatings. Preparation should be in accordance with standard practice for preparing surfaces for adhesive bonding.

APPLICATION OF EPOXY SYSTEMS
72-00008 – Epoxy Adhesive, Conductive, Two-Component.

Stir parts 1 and 2 thoroughly, then mix together one unit of part 1 and 1.4 units of part 2. They may be mixed either by volume or weight. Apply with dispensing equipment, syringe or spatula. May be cured at room temperature or elevated temperature. See Table for cure time and temperature. 72-08116 – Epoxy Solder, Conductive, High Silver Content, Two Component.

Stir Part 1 and Part 2 thoroughly, then mix together one unit of Part 1 and one unit of Part 2. They may be mixed either by volume or weight. Since each jar is half filled, there is sufficient room to mix Part 1 and Part 2 together in either jar. May be cured at room temperature or elevated temperature. For solvent cleaning of surface or material cleaning use Xylene.

CAUTIONS
The conductive systems are safe, non-volatile and non-toxic; however, the following precautions must be observed:
Avoid direct skin contact, as the systems may cause irritation to some individuals. If this should occur, wash with mild soap and rinse with clean water. Contact physician should irritation occur … Avoid inhalation of vapors by working in ventilated area … Prevent contact with the eyes … Do not use near open flame … This material is for industrial use only.

ORDERING INFORMATION

When ordering CONDUCTIVE EPOXY, specify number of kits and TECKNIT Part Number. For assistance, contact your nearest TECKNIT area representative or factory location.

Download the Tecknit 8116 Adhesive Resources

Download the Warranty

This warranty comprises the sole and entire warranty pertaining to items provided hereunder. seller makes no other warranty, guarantee, or representation of any kind whatsoever. All other warranties, including but not limited to, merchant ability and fitness for purpose, whether expressed, implied, or arising by operation of law, trade usage, or course of dealing are hereby disclaimed. Notwithstanding the foregoing, there are no warranties whatsoever on items built or acquired wholly or partially, to buyer’s designs or specifications.

Limitation of remedy: Seller’s Liability arising from or in any way connected with the items sold or this contract shall be limited exclusively to repair or replacement of the items sold or refund of the purchase price paid by buyer, at seller’s sole option. In no event shall seller be liable for any incidental, consequential or special damages of any kind or nature whatsoever, including but not limited to lost profits arising from or in any way connected with this agreement or items sold hereunder, whether alleged to arise from breach of contract, expressed or implied warranty, or in tort, including without limitation, negligence, failure to warn or strict liability.

Details: GENERAL DESCRIPTION

72-00008 – EPOXY ADHESIVE, CONDUCTIVE TWO COMPONENT – This commercial grade, conductive epoxy is designed for use in bonding applications where good conductivity is required. When mixed in a ratio of 1:1.4 by volume or weight, the two components produce a light colored creamy paste which can be easily applied.

72-08116 – EPOXY SOLDER, CONDUCTIVE, HIGH SILVER CONTENT, TWO-COMPONENT – This is a silver filled epoxy system designed for maximum performance and lowest volume resistivity. It is easily mixed 1:1 by volume or weight, from the two one-ounce jars. Its consistency is that of a thick paste, making it easy to dispense and apply.

PREPARATION AND CLEANING

To ensure the best electrical and mechanical reliability, it is highly recommended that the surfaces to be bonded are thoroughly cleaned of grease, oils, dirt and oxide coatings. Preparation should be in accordance with standard practice for preparing surfaces for adhesive bonding.

APPLICATION OF EPOXY SYSTEMS
72-00008 – Epoxy Adhesive, Conductive, Two-Component.

Stir parts 1 and 2 thoroughly, then mix together one unit of part 1 and 1.4 units of part 2. They may be mixed either by volume or weight. Apply with dispensing equipment, syringe or spatula. May be cured at room temperature or elevated temperature. See Table for cure time and temperature. 72-08116 – Epoxy Solder, Conductive, High Silver Content, Two Component.

Stir Part 1 and Part 2 thoroughly, then mix together one unit of Part 1 and one unit of Part 2. They may be mixed either by volume or weight. Since each jar is half filled, there is sufficient room to mix Part 1 and Part 2 together in either jar. May be cured at room temperature or elevated temperature. For solvent cleaning of surface or material cleaning use Xylene.

CAUTIONS
The conductive systems are safe, non-volatile and non-toxic; however, the following precautions must be observed:
Avoid direct skin contact, as the systems may cause irritation to some individuals. If this should occur, wash with mild soap and rinse with clean water. Contact physician should irritation occur … Avoid inhalation of vapors by working in ventilated area … Prevent contact with the eyes … Do not use near open flame … This material is for industrial use only.
Specs: ORDERING INFORMATION

When ordering CONDUCTIVE EPOXY, specify number of kits and TECKNIT Part Number. For assistance, contact your nearest TECKNIT area representative or factory location.
Resources: Download the Tecknit 8116 Adhesive Resources
Warranty: Download the Warranty

This warranty comprises the sole and entire warranty pertaining to items provided hereunder. seller makes no other warranty, guarantee, or representation of any kind whatsoever. All other warranties, including but not limited to, merchant ability and fitness for purpose, whether expressed, implied, or arising by operation of law, trade usage, or course of dealing are hereby disclaimed. Notwithstanding the foregoing, there are no warranties whatsoever on items built or acquired wholly or partially, to buyer’s designs or specifications.

Limitation of remedy: Seller’s Liability arising from or in any way connected with the items sold or this contract shall be limited exclusively to repair or replacement of the items sold or refund of the purchase price paid by buyer, at seller’s sole option. In no event shall seller be liable for any incidental, consequential or special damages of any kind or nature whatsoever, including but not limited to lost profits arising from or in any way connected with this agreement or items sold hereunder, whether alleged to arise from breach of contract, expressed or implied warranty, or in tort, including without limitation, negligence, failure to warn or strict liability.
