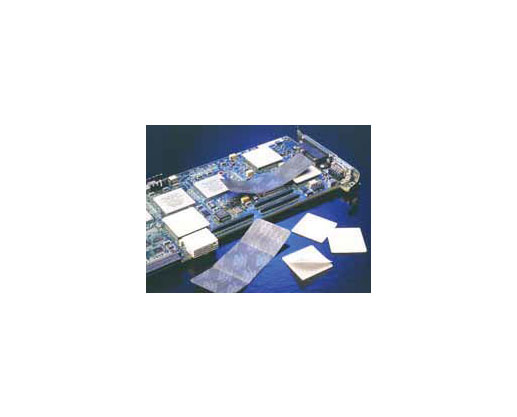

T-WING® and C-WING™ Heat Spreaders
Chomerics’ family of thin heat spreaders provides a low-cost, effective means of cooling IC devices in restricted spaces where conventional heat sinks are inappropriate.
T-Wing spreaders consist of 5oz. (0.007inch/0.18mm thick) flexible copper foil between electrically insulating films. High strength silicone PSA (pressure-sensitive adhesive) provides a strong bond to the component. The compliant nature of these “thermal wing” heat spreaders permits nearly 100% adhesive contact with non-flat package surfaces, optimizing thermal and mechanical performance.
C-Wing spreaders are a ceramic version available for EMI-sensitive applications. They consist of aluminum oxide substrates with the same silicone PSA used on T-Wing heat spreaders.
Product Highlights:
- Component junction temperature reduction of 10-20°C is common
- Easily added to existing designs to lower component temperatures and improve reliability
- Custom shapes available for complex designs
Typical Applications
- Microprocessors
- Memory modules
- Laptop PCs and other high density, handheld portable electronics
- High speed disk drives
C-Wing
- Used where localized sensitivity to EMI (electromagnetic interference) exists
- Low profile
- Peel and stick application
T- Wings
- Low profile (0.33mm/0.013in) allows use in limited space environments
- Easy peel and stick adhesion to all surfaces, including packages with residual silicone mold release
- Offers low cost cooling for many package types
- Low application force (<5psi/ 0.03MPa) minimizes risk of damage to component
- Available in a range of standard sizes
- Pliable nature allows conformance to concave or otherwise non-flat surfaces for optimal thermal and mechanical performance
- Light weight (0.039 oz/inch2)
- Standard parts are scored for easy forming and alignment
- Easy removal for device replacement
- Available die-cut on continuous rolls
Testing Summary
Summaries of test procedures used for T-Wing heat spreaders are described below. Thermal performance, adhesion strength and visual inspection were used as pass/fail criteria.
Apparatus
Anatek® Thermal Analyzer: The ATA was used to measure Rj-a before and after environmental stressing. PQFP: 196 lead, plastic PQFPs known to contain silicone mold release were evaluated. T-Wing Heat Spreader: 1 inch x 4 inch TWing parts were applied to the PQFP packages with a 5 psi (0.03 MPa) mounting pressure.
Thermal Performance
Various sizes of T-Wing heat spreaders were applied to a 196 lead PQFP using less than 5 psi (0.03 MPa) bonding pressure. Within 30 minutes of application, the test boards were mounted in an Analysis Tech® thermal analyzer. The devices were heated to equilibrium (45 to 60 minutes) with approximately 3 watt load on 3 x 3 inch (7.6 x 7.6 cm) test boards. Two test environments were used: restricted convention, achieved with a 1 x 5 x 6
inch (2.5 x 12.7 x 15.2 cm) plexiglass box; and 100 LFM (30m/min) air flow. Results were obtained using thermocouples for Tc (centered on case) and Rj-a.
Environmental Stressing Control: Specimens were maintained for 1000 hours at standard laboratory conditions, 23°C, 35-60% RH.
Heat Aging: Test specimens were placed in a forced convection hot air oven maintained at 150°C ±5°C for 1000 hours. Test specimens were then removed and tested.
Elevated Temperature/High Humidity: Specimens were placed in a humidity chamber maintained at 85°C ±2°C and 90%-0 +10% RH for 1000 hours.
Temperature Cycling: Specimens were subjected to 500 cycles from -50°C to +150°C in a Tenney Temperature Cycling Oven.
Temperature Shock: Specimens were subjected to 100 temperature shocks by immersion into -50° and +150°C liquids. Temperatures were monitored with thermocouples.
Evaluation Procedure Visual: All test specimens were examined for de-bonding, delamination or other signs that the tape was failing after environmental stress.
Thermal Performance: T-Wing was applied to the PQFP with 5 psi mounting pressure. After a one hour dwell, the Rj-a of each specimen was measured at 100 LFM and under restricted convection conditions. The Rj-a was again measured after environmental stressing.
90° Peel Strength: A T-Wing heat spreader was applied to each PQFP with 5 psi mounting pressure. The specimens were subjected to environmental stress and then tested for 90° peel strength at room temperature.
